TV Tuner Audi MMI 2G - Plug & Play USB MPEG4 and MPEG2
- A multimedia box that leaves nothing to be desired:
- DVB-T digital television directly on the original vehicle screen
- Real-time TV recording on USB
- MP3 music playback and playback of videos via the USB port
- Total integration into the factory infotainment system
- Operation by:
- MMI control unit
- Multifunction steering wheel (if present)
- No installation of additional monitors, loudspeakers or control units necessary
- Suitable for the following vehicles with MMI High 2G:
- A4 8K
- A5 8T
- A6 4F
- A8 4E
- Q7 4L
- NOTE MMI 2G WITHOUT reversing camera: If the vehicle is not factory-equipped with a reversing camera, article no. 35600 required
- NOTE MMI 2G: Suitable for vehicles without a factory TV function. Not suitable for vehicles with a factory-installed TV tuner or retrofitted multimedia adapter
- In the case of a factory-installed analog TV, article 38323-2 is also required to install our TV tuner. The existing analog TV tuner will be replaced by our TV tuner.
- Connection of another video source (without audio input) - Manual selection of the video source - Article no. 35570 required
- Image feed to other monitors (headrests or ceiling monitors) is possible using article 38392 - ONLY video, no audio signals
- Compact design enables easy installation
USB interface
- USB connection for external hard drive * or memory stick
- USB source must be formatted to FAT32
- MP3 music playback and video playback
- Display of song title and artist on the original vehicle screen
- Last position memory function
- With audio playback, the last track you listened to starts from the beginning
- When playing video, it starts exactly where it ended
- Format of the TV recording: * .mpg
Supported music formats
- .wav
- .mp3
Supported video formats
- .mpg
- .avi (normal & packed bitstream - mpeg2 / 4 - mp3 / aac)
- .vid (normal & packed bitstream - mpeg2 / 4 - mp3)
- .xvid (normal & packed bitstream - mpeg2 / 4 - mp3)
- .div (normal & packed bitstream - mpeg2 / 4 - mp3)
- .divx4.0 divx5.0 (normal & packed bitstream - mpeg2 / 4 - mp3)
- .mov
DVB-T
- Integrated DVB-T receiver
- Real-time TV recording via USB interface
- Playback of TV recordings at a desired time
- EPG - Electronic Program Guide (if available)
- Teletext
- Frequency range: 145.1MHz ~ 862 MHz
- Channel bandwidth: 6/7/8 MHz
- Video / audio decoder: MPEG II
- No HDTV
- MPEG4 and MPEG2 possible
- No CAM slot for Pay TV smart cards (e.g. necessary in the Netherlands)
- Resolution: 720x576 (PAL) / 720x480 (NTSC)

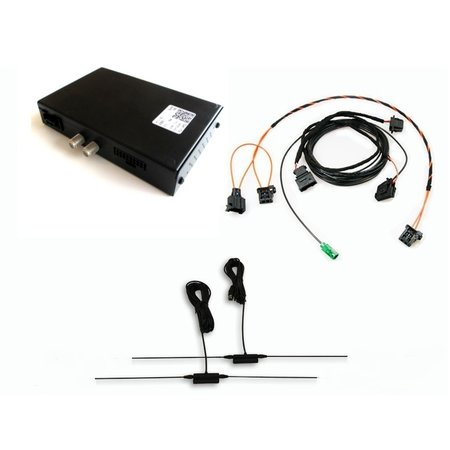

scope of delivery
- interface
- Specific cable set
- 2 active antennas (cable length approx. 5m each)
Note
- Attribute information: OEM RVC = rear view camera installed at the factory
- MMI 2G: If the vehicle is not factory-equipped with a reversing camera, article no. 35600 required
- Installation by our in-house installation service is possible on request
- * For hard drives with a power consumption of up to 500mA - an external power supply is required for higher power consumption
