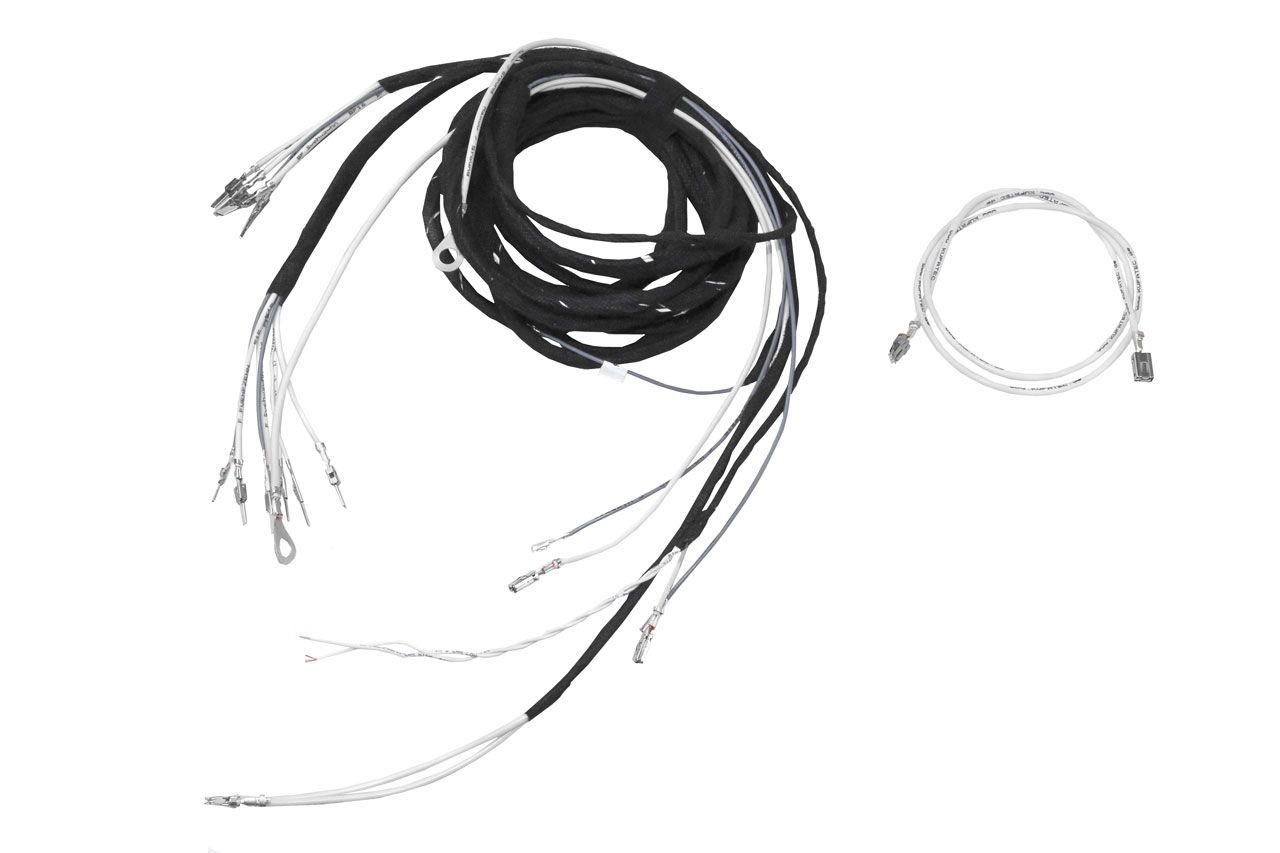

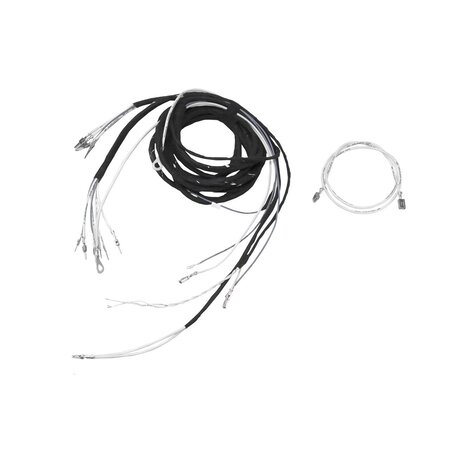

Seat heating cable harness for VW MQB
Product information "Seat heating cable harness for VW MQB"
- Specific cable set for connecting vehicle seats for the following vehicles:
- VW Arteon 3H
- VW Crafter SY
- VW Golf 7 5G1, BA5, BE1, AM1, AU1
- VW Golf 7 BQ1, BV5, BE2, AN1
- VW Passat 3G
- VW Touran 5T
- VW Tiguan AD1, BW2, AX1, BJ2
- VW T-Roc A11, D11, AC7, AC8
- Seat Leon 5F
- Seat Ateca KH7, KHP
- Seat Tarraco KN2
- Skoda Karoq NU7
- Skoda Kodiaq NS7
- Skoda Superb 3V
- The following connection options are available:
- Seat heating only
- Seat heating + seat adjustment (incl. lumbar support)
- Seat adjustment only if seat heating is present
- Easy commissioning with minimal time expenditure
- Only one cable set is required to connect both seats
- The cable set must be connected to the original seat heating controls in the dashboard or the climate control unit as well as the central electrical system
- The cable set must be connected to the original heating mats and the cable set 39962
- This wiring harness is to be used for retrofitting the original seat heating in the vehicle, please select the option whether only the seat heating or the seat heating with seat adjustment should be retrofitted
- Variant 2 for the following vehicles:
- VW Arteon 3H
- VW Crafter SY
- VW Golf 7 BQ1, BV5, BE2, AN1
- VW Tiguan AD1, BW2, AX1, BJ2
- VW T-Roc A11, D11, AC7, AC8
- Seat Ateca KH7
- Seat Tarraco KN2
- Skoda Karoq NU7
- Skoda Kodiaq NS7
Scope of delivery:
- cable set
A notice:
- When retrofitting seat heating, replacement of climate control unit required
- Check compatibility of the on-board power supply control unit and replace with Highline version if necessary
- If the seat heating mats are not yet integrated, they must be purchased from a VW dealer using the chassis number
- Coding is done using coding dongle 41899
Additional information:
- Vehicles with SFD2 available upon request. Further information can be found here.
Product safety information:
Safety instructions for packaging:
- There is a risk of injury from sharp edges of paper, cardboard, or film, as well as sharp metal clips. Packaging material is not a toy. Danger of suffocation for children or animals.
Safety instructions for the product:
- Installation may only be performed by trained specialists. Installation should only be carried out when the power is off. For example, disconnect the battery from the vehicle electrical system. Please follow the vehicle manufacturer's instructions.
- To avoid jeopardizing your driving safety, never use safety-relevant screws, bolts or other fastening points on the steering, braking system or other components.
- Connect the device only to a 12V vehicle voltage with a ground connection to the vehicle body. This subassembly is not approved for use in trucks or other vehicles with 24V vehicle voltage.
- Avoid installing the device in locations that would impair driving safety or the functionality of other subassemblies installed in the vehicle.
- This module may only be used in combination with the vehicle types and model series listed below; installation may only be carried out using the connections specified in the installation instructions.
