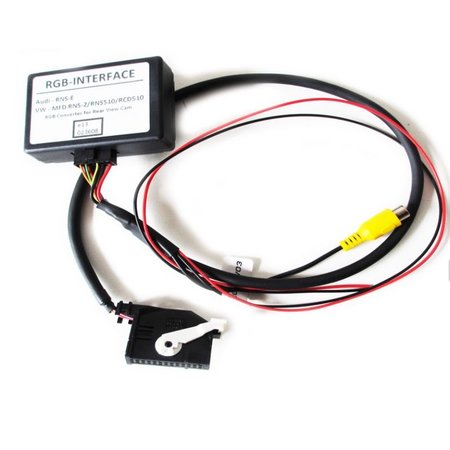

RGB Converter for reversing camera RCD510 RNS510 RNS315 Columbus Bolero Trinax
r.LiNK RFK input NTSC VW MFD3 / RNS510 / RCD510
The r.LINK interface enables the connection of a rear view camera to the factory navigation system of the vehicle manufacturer.
product features
Plug and Play Interface
Integration into the vehicle infotainment
Rear-view camera input (only NTSC cameras)
Reversing camera image playback up to 5 Km / h
Automatic switching to rear-view camera input when reverse gear is engaged (encoding the head-unit necessary)
compatibility
Compatible with all Volkswagen, Skoda and Seat car models with navigation systems MFD3 / RNS510, Trinax and Columbus and navigation systems RCD510 and Bolero WITH 26-pin connector on the back of the head unit. For vehicles WITHOUT factory rear-view camera.
limitations
Factory TV tuner
Must NOT be installed
After-market rear-view camera
Only NTSC cameras compatible
coding
The head unit is coded by diagnosis computer or our optional OBD-coders OBD MFD3-R-xx / OBD-RCD510-R-xx to rear camera.
(Only for MFD3 / RNS510 Version B with minimum software 1100 possible. Ask your dealer for an update to version B.)
Specifications (interface box)
Operation voltage
10.5? 14.8V
Quiescent current
0mA
shunt
200mA
input
2.8W
temperature range
-30 ° C to + 80 ° C
mass
53g
Dimensions
72 x 23 x 50mm (W x H x D)
Existing connections (interface box)
12-pin Molex connector
delivery
Interface box RLC-M02
Harness RLC VW03
