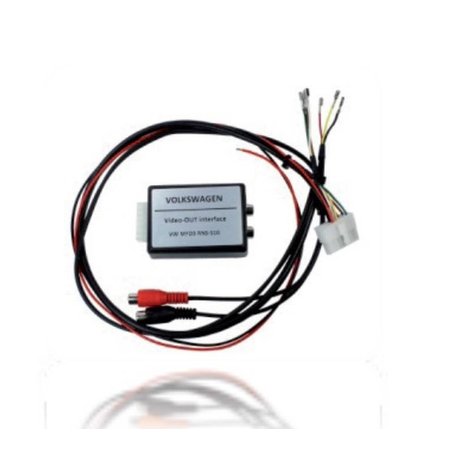

RNS510 Video Output for 2 Monitors AV Out with TV Tuner
r.LiNK RFK input NTSC VW MFD3 / RNS510 / RCD510
The r.LINK interface enables the connection of a reversing camera to the factory navigation system of the vehicle manufacturer.
product features
Plug and Play Interface
Integration into the factory infotainment
Rear view camera input (NTSC cameras only)
Rear view camera Image playback
The interface allows the connection of 2 additional monitors (video incl. Stereo audio output) on a VW MFD3 / RNS510 system with original TV tuner or installed multimedia interface.
Suitable for :
VW with RNS510 MFD3
Skoda, Seat, Columbus Trinax, Amunsen,
Details :
Hardware version / hardware version: V1.0.0
Power supply / power supply: 12V DC
Voltage Working Range / Voltage Operating Range: 10.5 - 14.8V
Quiescent current / quiescent current: 0 mA
Power consumption / power consumption: 1.1 W
Temperature range / Temperature: -30 ° C - + 80 ° CG
Weight / Weight: 40 g
Dimensions WxHxD / Dimensions WxHxD: 80 x 25 x 48 mm
Delivery :
Adapter interface
cable
Instructions as PDF file.
e up to approx. 5 km / h
Automatic switching to reverse camera input when engaging reverse gear (coding of the head unit required)
compatibility
Compatible with all Volkswagen, Skoda and Seat vehicle models with MFD3 / RNS510, Trinax and Columbus navigation systems and RCD510 and Bolero navigation systems WITH 26-pin connector on the back of the head unit. For vehicles WITHOUT factory rear-view camera.
limitations
Factory TV tuner
May NOT be installed
After-market rear-view camera
Only NTSC cameras compatible
coding
The head unit must be coded on the rear view camera by diagnostic computer or by our optionally available OBD-MFD3-R-xx / OBD-RCD510-R-xx OBD encoders.
(Only available for MFD3 / RNS510 Version B with minimum software 1100. Ask your dealer for an update to version B.)
Technical data (interface box)
Operation voltage
10.5? 14.8V
quiescent current
0mA
shunt
200mA
input
2.8W
temperature range
-30 ° C to + 80 ° C
mass
53g
Dimensions
72 x 23 x 50mm (W x H x D)
Existing connections (interface box)
12 pin Molex connector
delivery
Interface box RLC-M02
Cable set RLC-VW03
