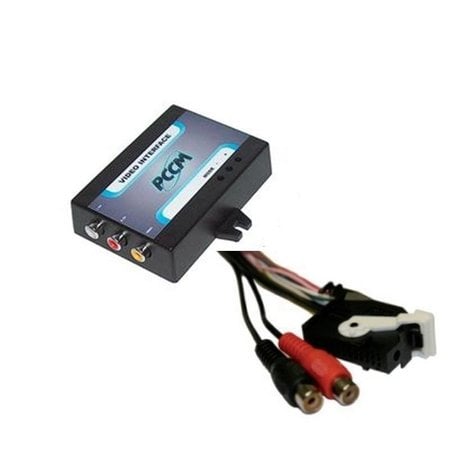

RGB Converter for rear view camera RNS510 RNS315 RCD510 Columbus Bolero Trinax - Copy
r.LiNK RFK input NTSC VW MFD3 / RNS510 / RCD510
The r.LINK interface enables the connection of a reversing camera to the factory navigation system of the vehicle manufacturer.
Plug and Play Interface
Integration into the factory infotainment
Rear view camera input (NTSC cameras only)
Reversing camera Image reproduction up to approx. 5 km / h
Automatic switching to reverse camera input when engaging reverse gear (coding of the head unit required)
Compatible with all Volkswagen, Skoda and Seat vehicle models with MFD3 / RNS510, Trinax and Columbus navigation systems and RCD510 and Bolero navigation systems WITH 26-pin connector on the back of the head unit. For vehicles WITHOUT factory rear-view camera.
Factory TV tuner
May NOT be installed
After-market rear-view camera
Only NTSC cameras compatible
The head unit must be coded on the rear view camera by diagnostic computer or by our optionally available OBD-MFD3-R-xx / OBD-RCD510-R-xx OBD encoders.
(Only available for MFD3 / RNS510 Version B with minimum software 1100. Ask your dealer for an update to version B.)
Technical data (interface box)
-30 ° C to + 80 ° C
72 x 23 x 50mm (W x H x D)
Existing connections (interface box)
12 pin Molex connector
Interface box RLC-M02
Cable set RLC-VW03
