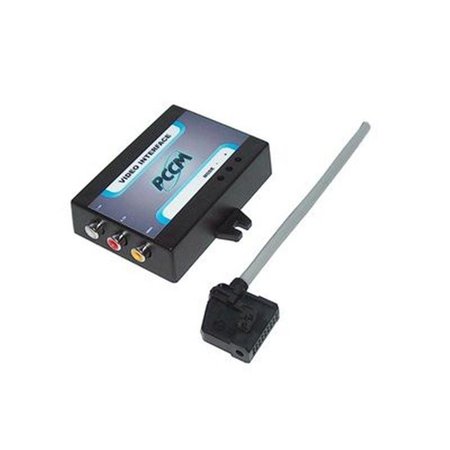

Interface multimedia adapter for Seat, Skoda, VW MFD2 RNS2

Not yet rated | Create your own review
Delivery time:
1 to 8 days
Availability:
In stock (3 pieces)
Interface multimedia adapter for Seat, Skoda, VW MFD2 RNS2

Read more

€103,49 €119,00

Incl. tax

Interface multimedia adapter for Seat, Skoda, VW MFD2 RNS2

r.LiNK RFK input NTSC VW MFD3 / RNS510 / RCD510

The r.LINK interface enables the connection of a reversing camera to the factory navigation system of the vehicle manufacturer.


product features

Plug and Play Interface
Integration into the factory infotainment
Rear view camera input (NTSC cameras only)
Reversing camera Image reproduction up to approx. 5 km / h
Automatic switching to reverse camera input when engaging reverse gear (coding of the head unit required)



compatibility

Compatible with all Volkswagen, Skoda and Seat vehicle models with MFD3 / RNS510, Trinax and Columbus navigation systems and RCD510 and Bolero navigation systems WITH 26-pin connector on the back of the head unit. For vehicles WITHOUT factory rear-view camera.

limitations

Factory TV tuner
May NOT be installed
After-market rear-view camera
Only NTSC cameras compatible
coding
The head unit must be coded on the rear view camera by diagnostic computer or by our optionally available OBD-MFD3-R-xx / OBD-RCD510-R-xx OBD encoders.
(Only available for MFD3 / RNS510 Version B with minimum software 1100. Ask your dealer for an update to version B.)


Technical data (interface box)

Operation voltage
10.5? 14.8V
quiescent current
0mA
shunt
200mA
input
2.8W
temperature range
-30 ° C to + 80 ° C
mass
53g
Dimensions
72 x 23 x 50mm (W x H x D)


Existing connections (interface box)

12 pin Molex connector

delivery

Interface box RLC-M02
Cable set RLC-VW03
