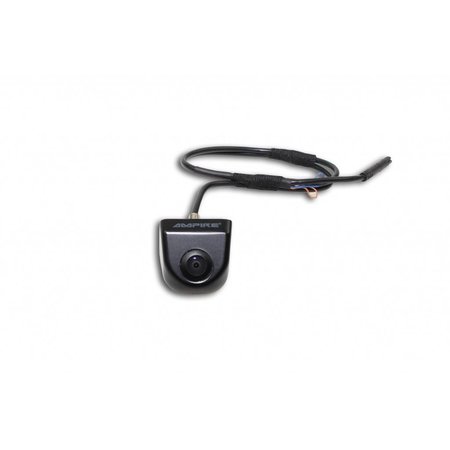

Rear view camera Ampire KC802-NTSC-2G
- The KC802-NTSC substructure camera is a reversing / surveillance camera with unlimited use area by car, bus, camper, truck or trailer.
- The aluminum housing is weather resistant, made waterproof and very stable.
- Optionally, guidelines can be displayed for abeter parking
Technical Information
- Image replication (Guidelines adjustable)
- black aluminum housing
- Image replication mirrored (standard adjustable)
- Image Sensor Type 1/4 '' Color CMOS (PC7070)
- NTSC video source
- Resolution 648,488 pixels
- DIN IP67
- Tripping 420 TV lines
- Exposure 1 / 50-60 ~1 / 15,000 seconds
- SNR = 48db
- Dynamics> 70db
- Light sensitivity <0.2 Lux
- Output 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic level matching
- Operating voltage 12 V DC 10%
- Power consumption 800mW
- Operating temperature -40 ° C ~ + 80 ° C
- diagonal viewing angle 170 °
- horizontal viewing angle 120 °
- Construction Camera dimensions 32 x 35 x 25mm
- 7.5mm bore hole
- Packaging dimensions 15.5 x 8.0 x 5.5cm
- RoHS and E certified.

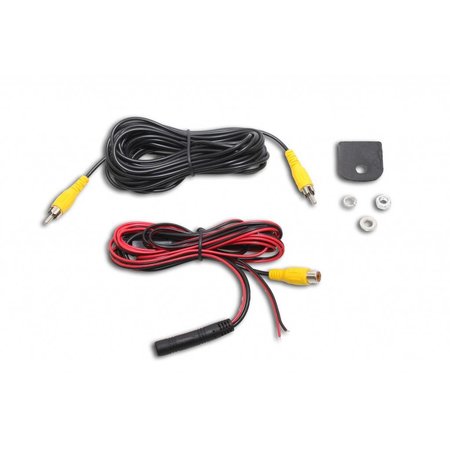

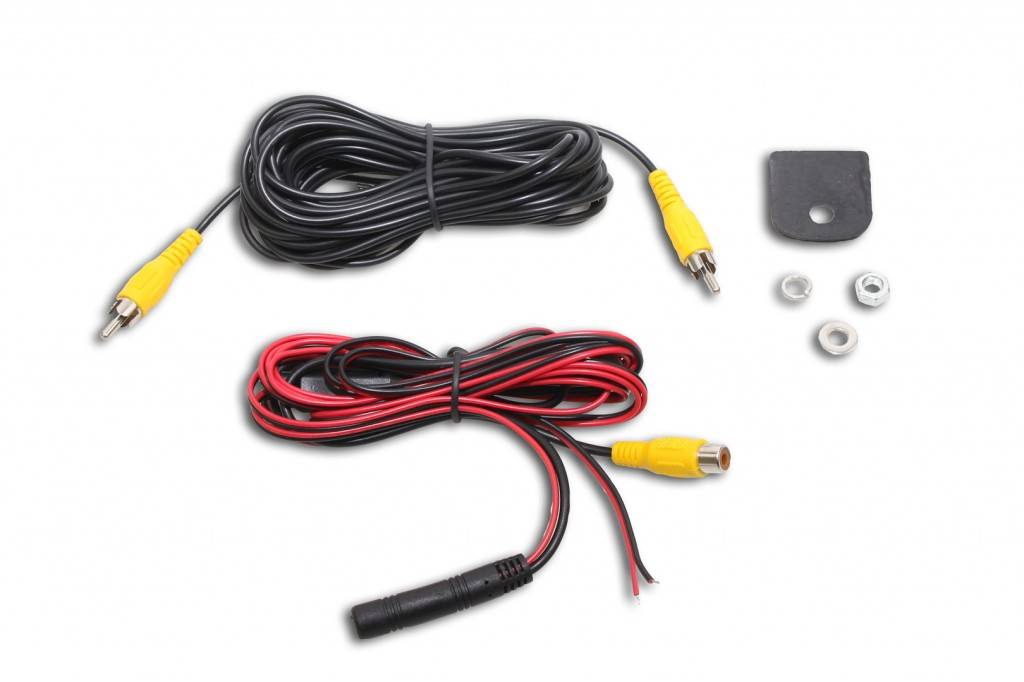

Scope of delivery
- Camera
- Connection cable, 7 meter
Note
- The camera is not suitable for continuous operation or monitoring.
- The camera may not be operated with ignition (K15), characterized the camera may be damaged due to overheating.
