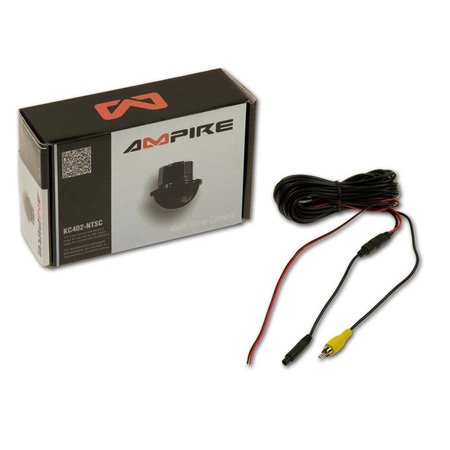

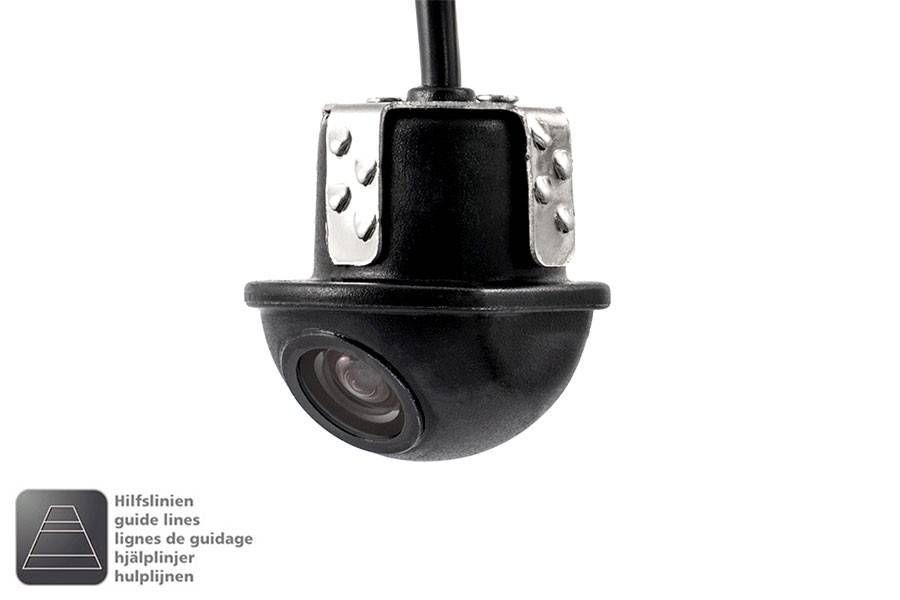

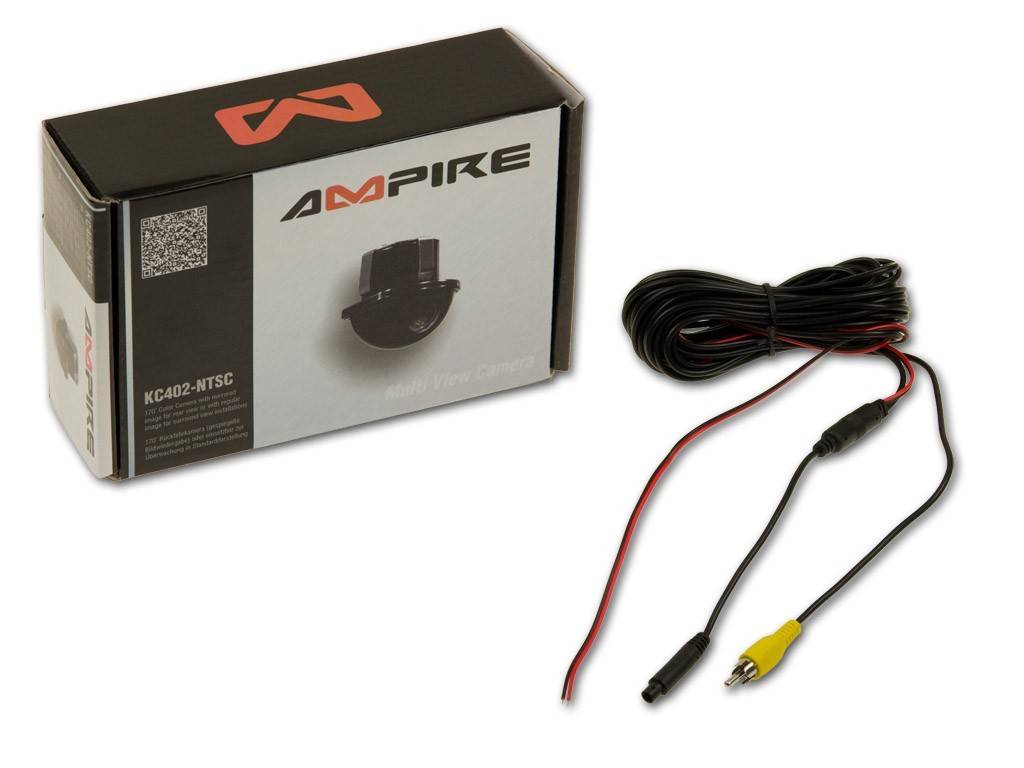

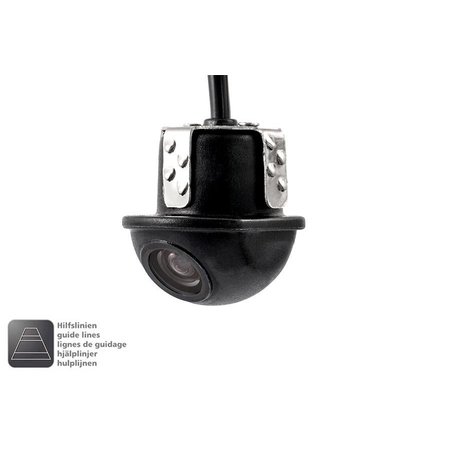

Rear view camera Ampire KC402-NTSC
- Mini Rearview Camera with boundless field of application in car, bus ,RV or Truck
- Ideally suited for integration close to the vehicle bumper
SPECIFICATIONS
- Playback: mirrored / normal adjustable
- Sensor Type : 1/3.7'' Color CMOS ( PC3030K )
- Lens: 1.7mm
- Tripping in Rows: 420TVL
- Resolution in pixels: 640 x 480
- Picture : NTSC
- Frame rate: 60Hz
- Sensitivity: <0.5 Lux
- diagonal viewing angle : 170°
- White Balance: Auto
- Level Adjustment : Automatic
- Output: RCA 1.0 Vpp 75 Ohm
- Working temperature: -40° C to +80° C
- Operating Voltage: 13.8 Volts DC
- Weight: 19g
- Splashproof to IP66
- Power consumption: 70mA
- E-registration : E13 - 10R00 - 10R02 - 3857-00
- CE approval : 960323L14 , 960323L13
- RoHS Complied
- Dimensions: 30 x 29 x 24mm ( LxWxH )
- Installation hole: 21mm
- Mounting depth: 14mm
- Bracket: Stainless steel
- Cable length: 700cm

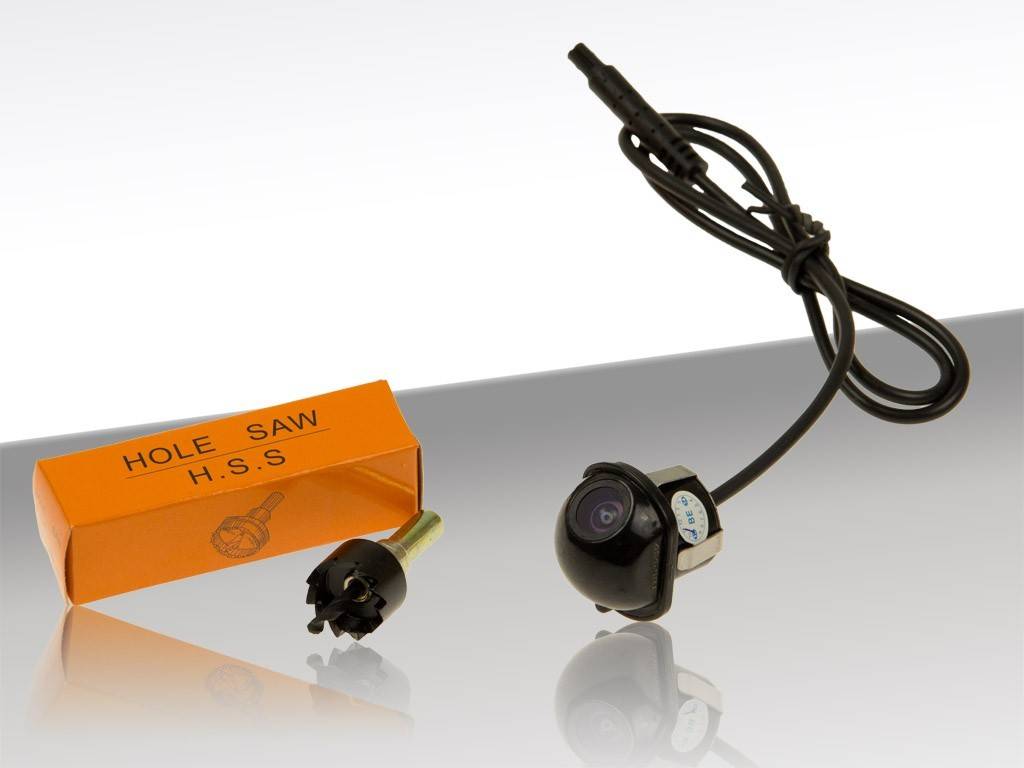

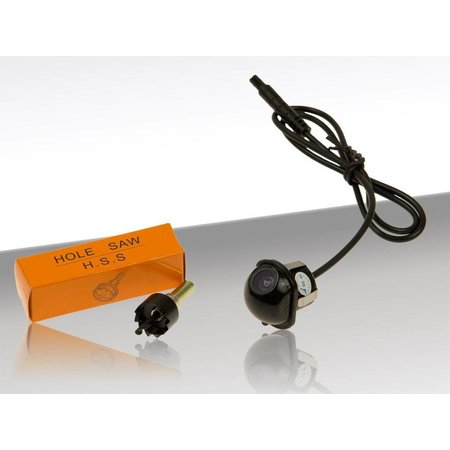

Scope of delivery
- camera
- 700cm cable
- 21mm drill
- seal
Note
- Suitable for item number 35538 ??, 36492
- To include this camera in the IMA Multimedia Adapter you also need Item Nr. 35570
