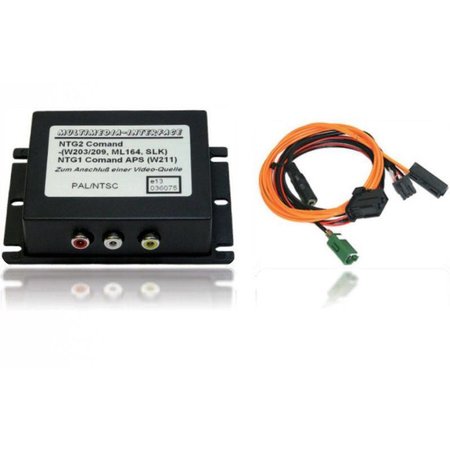

Multimedia Interface for COMAND NTG1 / NTG2
c.LOGiC lite Mercedes Benz Comand APS NTG1 / NTG2
c.LOGiC lite Interface AV input with control + camera input + switching signalsThe interface allows you to connect any AV source (eg Nachruestgeraete DVD Player, DVB-T tuner) to the OEM navigation system of the vehicle manufacturer. For the AV input is an IR control channel for disposal by the can be controlled by means of buttons on the OEM navigation system the main functions of connected Nachruestgeraete.
The control level can be assigned a fixed preprogrammed IR control code numerous Nachruestgeraete. A detailed list is shown in the infrared code table.
When inserting the Rueckwaertsganges is automatically switched to the Rear Camera Video Input of c.LOGiC lite (so that the automatic switch works out of the OEM operation, the Navigationsgeraet at diagnosis on Rear Camera is coded, it is not at all vehicle models possible) ,
Switching Outputs for Rear Camera and Nachruestgeraete make installation easier, faster and more comfortable.
Connections:
1 x AV input with IR-control channel
1 x video input for Rear Camera
Switching signals:
Rear Camera Power (max 0.5A)
Inrush for Nachruestgeraete (max 0.5A)
Compatible with Mercedes Benz, Maybach
Navigation System NTG1 and NTG2
NTG1 Installed inter alia:
- CLS Coupe (W219) from 10/2004 to about 04/2008
- E-Class (W211) to about 04/2008
- SLK-Class (R171) from 03/2004 to about 04/2008
- Maybach all vehicles with green Fakrastecker at the back of Comand
NTG2 Installed inter alia:
- A-Class (W169) from 09/2004
- B-Class (W245) from 09/2004
- C-Class (W203) from 04/2004
- CLK-Class (C209, W209) from 06/2004
- GL-Class (X164) all MJ
- ML-Class (W164) to about 04/2008
- R-Class (W251) to about 04/2008
- sprinter
- Viano
Please note: Suitable for vehicles with green Fakrastecker. From about 11/2007 this was omitted in vehicles without factory camera and without factory TV tuner.
** Coding not in all vehicle models possible (eg. MB Sprinter)
