Audio Interface for Audi MMI 3G High and Basic Bluetooth AUX AMIAudio Interface for Audi MMI 3G High & Basic Bluetooth AUX AMI

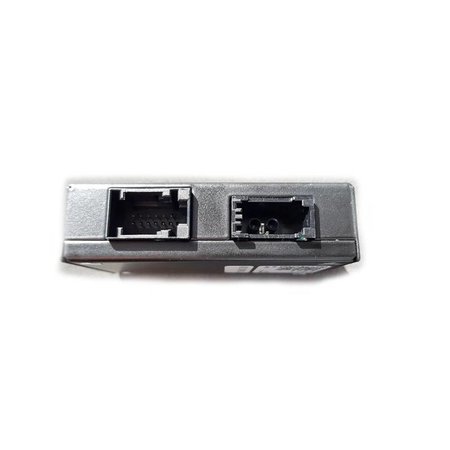

Our completely newly developed music interface combines all customer requirements in one box and thus replaces various previous versions. It allows you to connect different sources to the Audi MMI 3G and convert it into a multimedial audio station.
The music playback is supported by:
- about Bluetooth everything
- via AUX Chinch everything
MMI 3G HIGH and BASIC
The music interface is installed in the glove compartment. For this purpose, a cut-out must be incorporated at the rear for the cable routing. A disconnection in the MMI is not necessary after the assembly of our set! A plug & play optical fiber connection cable is included in the package. The current tap is located on the fuse box to the right of the control panel, the connection cable is already prefabricated for this purpose and is only plugged in from behind. A fuse is, of course, part of the scope of supply. The ground connection is made by means of an eyelet on the body mass (simply screw it to the available or new ground point).
Features of the music interface: Playlist, title, artist, podcasts and audiobooks are displayed on the MMI display, the functions Forward and Backward as well as scrolling can be performed via the Audi MMI / MFL.
